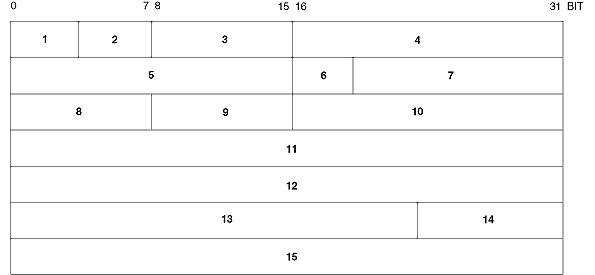

IP packet header

rename
lutaxafa's version from 2016-12-22 18:09

Section

BCDAEGFHIJKLMNO



LabelAnswer
Aversion
Bheader length (32-bit words)
CTOS (type of service)
Ddatagram length (header+payload in bytes)
Eident
Fflags (Do-not-fragment & More-fragments-to-come)
Goffset (within fragmented IP packet)
Httl
Iprotocol
Jchecksum (16-bit 1s complement sum = FFFF)
Ksrcaddr
Ldestaddr
Moptions (variable)
Npad
